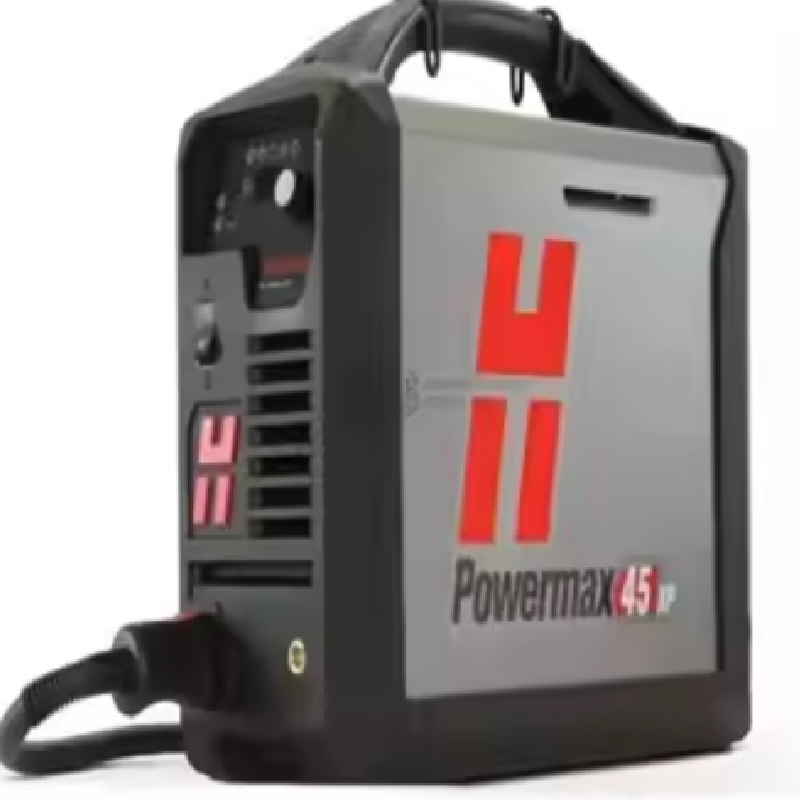

Lone Star 1/2” 45 Amp Hypertherm Powermax 45XP

⦁ Input Power:
⦁ Voltage: 200-480 V, single-phase or three-phase
⦁ Frequency: 50/60 Hz

⦁ Output Current:
⦁ Range: 10 to 45 Amps

⦁ Cutting Capacity:
⦁ Maximum cut thickness: 1/2” (12.7 mm) at 45 Amps
⦁ Recommended cut thickness: 3/8” (9.5 mm)
⦁ Severance cut thickness: up to 3/4” (19 mm)

⦁ Duty Cycle:
⦁ 100% duty cycle at 40 Amps
⦁ 60% duty cycle at 45 Amps

⦁ Weight:
⦁ Approximately 30 lbs (13.6 kg)

⦁ Dimensions:
⦁ Size: 8.5” H x 17” W x 23” D (216 mm x 432 mm x 584 mm)

⦁ Air Supply:
⦁ Compressed air requirements: 70-110 psi (4.8-7.6 bar)
⦁ Minimum flow rate: 5.0 CFM (142 liters per minute) at 70 psi

⦁ Cooling System:
⦁ Built-in air-cooled system

⦁ Torch Type:
⦁ Hand-held or mechanized plasma torch options

⦁ Electrode and Nozzle Lifespan:
⦁ Extended consumable life due to refined cutting technology

⦁ Safety Features:
⦁ Automatic pressure control
⦁ Thermal overload protection

⦁ Control Features:
⦁ No-Dust control: automatically adjusts to cut thickness

⦁ Accessories:
⦁ Comes with a variety of torches, consumables, and accessories depending on the package.
