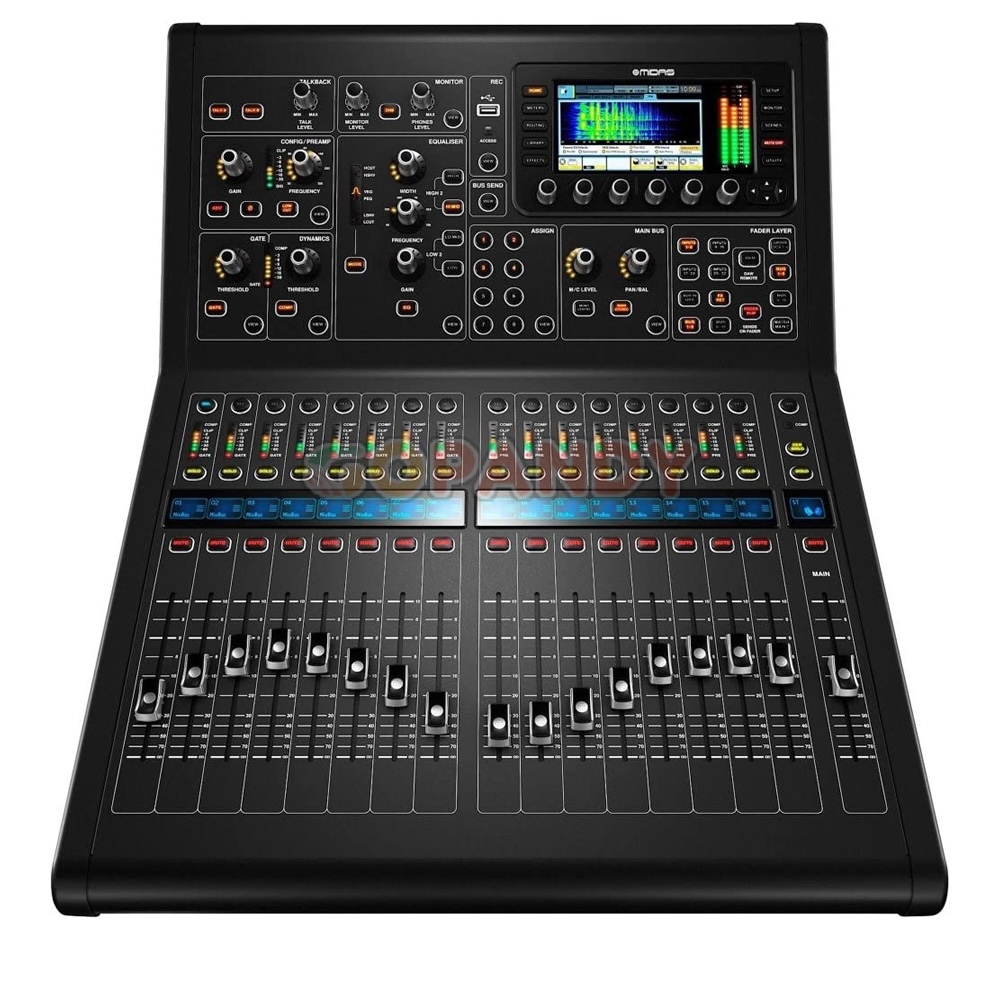

Midas M32R LIVE Digital Console for Live Performance

Here is a full breakdown of its key specifications and features:

Inputs & Outputs

• Input Channels: 40 simultaneous input channels (32 input channels, 8 aux channels, and 8 FX return channels).
• Preamps: It features 16 award-winning Midas PRO Series microphone preamplifiers on the rear panel, known for their transparent, low-noise, and pristine sound.
• Mix Buses: It has 25 mix buses that are time-aligned and phase-coherent, providing extensive routing and sub-mixing capabilities.
• Outputs: The console offers 8 XLR outputs on the rear, along with 6 TRS aux outputs, and a stereo monitor output.

Processing & Recording

• Digital Processing: The M32R LIVE uses a high-performance, 40-bit floating-point digital signal processor for ultra-low latency and precision.
• Effects: It includes 8 true-stereo digital signal processing effects engines that can be used simultaneously.
• Recording: The “LIVE” part of the name refers to the pre-installed Klark Teknik DN32-LIVE expansion module. This allows you to:
  • Record and play back up to 32 channels of uncompressed WAV audio directly to dual SD/SDHC cards.
  • Perform a virtual soundcheck without needing a computer.
  • Record up to 3 hours of 32-channel PCM audio in a single session.
• Computer Connectivity: It also functions as a 32×32 channel USB 2.0 audio interface for direct connection to your computer and DAW control using Mackie Control and HUI protocols.

Controls & Design

• Faders: 17 Midas PRO motorized 100mm faders. These faders are custom-designed and rated for over 1 million cycles, ensuring smooth and reliable performance.
• Display: A daylight-viewable 5-inch full-color TFT display screen.
• Networking: Two AES50 ports provide the ability to connect up to 96 inputs and 96 outputs via a digital snake or stage box (not included).
• Build: The M32R is built with a high-performance aluminum and steel structure and includes rack mount brackets for ultimate flexibility.

Dimensions & Weight

• Dimensions (W x D x H): 18.8″ x 24.3″ x 8.2″ (478 x 617 x 208 mm)
• Weight: Approximately 31.5 lbs (14.3 kg).

The M32R LIVE is an ideal solution for any professional setting that demands superior audio quality, powerful processing, and a convenient, all-in-one recording and mixing workflow.
