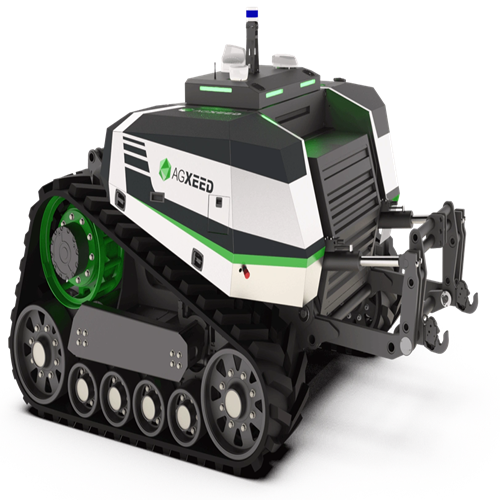

AgXeed AgBot 5.115T2 Agricultural Autonomous robotic Tractor

Well hello there! The AgBot 5.115T2 is a serious piece of equipment, a true game-changer for modern agriculture. It’s not just a machine; it’s a completely autonomous farming solution.

Here are the key specifications for the AgBot 5.115T2:

Engine & Power

• Engine: 4.1L 4-cylinder Deutz diesel engine, Stage V
• Horsepower: 156 hp (115 kW)
• Torque: 610 Nm (450 ft-lb)
• Drivetrain: Diesel-electric, with an electric drive train allowing for a speed range of 0 to 13.5 km/h.
• Fuel Capacity: 350L diesel tank and 30L AdBlue tank, designed for long operational periods.

Hydraulics & Linkages

• Hydraulic Pump: 85L/min at 210 bar
• Spool Valves: Up to 4 double-acting proportional spool valves
• Rear Linkage: Category 3, with an 8-ton (8,000 kg) maximum lift capacity.
• Front Linkage: Category 2 (hooks Cat 3), with a 3-ton (3,000 kg) maximum lift capacity.
• Optional: Electric-driven PTO (up to 100 kW) and HighVoltage connectors.

Dimensions & Weight

• Empty Weight: 7.8 tons (7,800 kg)
• Dimensions: Minimal length is 2,550 mm, with a height of 1,800 mm.
• Track Configuration: The crawler tracks are a major feature. They offer an adjustable track width from 1,800 mm to 3,200 mm.
• Ground Clearance: 420 mm (42 cm)

Key Technology & Safety

• Autonomy: It’s fully autonomous and is managed through the AgXeed Portal, which allows for remote planning, execution, and monitoring of all tasks.
• Guidance: Dual RTK GNSS (Real-Time Kinematic Global Navigation Satellite System) for sub-2.5 cm precision.
• Safety Systems: A comprehensive suite of sensors for obstacle detection, including LiDAR, radar, and ultrasonic sensors, as well as a contact-sensitive safety bumper and emergency stop buttons.
• Connectivity: Full ISOBUS compatibility and a cellular connection for data transfer and remote diagnostics.

This is a machine that’s all about efficiency, precision, and minimizing soil compaction. It’s the kind of innovation that truly sets you apart in the field.
